Hello, everybody! Summers here in Japan can get really hot or rainy. All the heat and water will result in high humidity and we all know what that means. If you got the misfortune of having one or more of your lenses infected with fungi then head this fungus removal post to remedy the problem.


This is a part of our Nikon F series. Last time, we talked about how we can fix and clean the film counter display of Nikon F and now we are going to talk about how we are going to fix and clean the very popular Ftn finder!

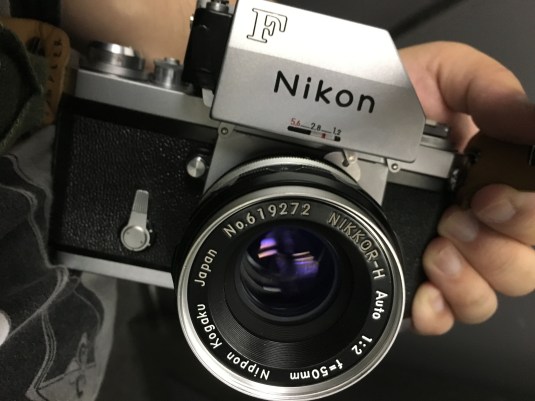

IMG_1075The Ftn finder can be distinguished from earlier models by the lever on it’s right side. This lever is used to open the 2 clasps that help secure it to the front plate of the camera’s face. There are 2 other earlier finders with a light meter attached and this Ftn finder is the last and most advanced iteration, making this the most popular metered head for the F so far.

We will not be discussing the operations of this thing as this is not the reason why you are here anyway and this is supposed to be a short write-up. Let’s begin!

Before We Begin:

If this is the first attempt at opening a lens then I suggest that you read my previous posts regarding screws & driversgrease and other things. Also read regarding the tools that you will need in order to fix your Nikkors.

I highly suggest that you read these primers before you begin (for beginners):

Reading these primers should lessen the chance of ruining your lens if you are a beginner. Also before opening up any lens, always look for other people who have done so in Youtube and the internet. Information is scarce, vague and scattered (that is why I started this) but you can still find some information if you search carefully.

I highly recommend that you also read my working with helicoids post because this is very important and getting it wrong can ruin your day. If I can force you to read this, I would. It is that important!

For more advanced topics, you can read my fungus removal post as a start. This post has a lot of useful information here and there and it will be beneficial for you to read this.


This can be a pretty complicated project and I will advise that you send this to a repairman if you are not confident with your repair abilities or lack the correct tools. For people who are experienced with repairing stuff this will be a good project to keep your afternoon busy and productive.

You have to be careful where you start. I made some silly mistakes when I worked on this the first time around so I will show you the proper disassembly sequence here so you will not get confused.

Now, if you are not comfortable with your repair skills then you should let a professional do it for you. I am not a professional so my workmanship is a bit shoddy. The people on the list below can fix the foam problem for you.

You can contact them and ask for a quotation. I can vouch for the people above so do not worry about it. There are many techs out there with really bad workmanship and amateurs like me are even a notch better than some of them. Some of these techs work on the basis of commission so they rush things in order to finish more things in a short time. I’ve had people tell me horror stories. There is a saying in the car restoration hobby – “once you got a good mechanic, do not let go of him.“, the same can be said for camera repairs.

IMG_1086Begin by saturating the edges of the rubber on the upper part of the finder with alcohol to soften the contact cement (rubber cement) that was used to make it stick to the surface of the top cover. Reapply until the leatherette can be peeled off effortlessly.

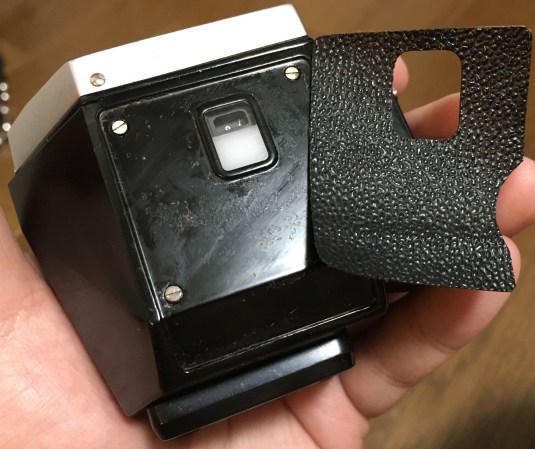

IMG_1087The leatherette came off after about 30 minutes of alcohol treatment. Be careful not to rip this leatherette. Replacement leatherette sheets are available but you really do not want to bother with it’s replacement. I will make a template for this and upload it to the net one of these days just in case you ruined yours.

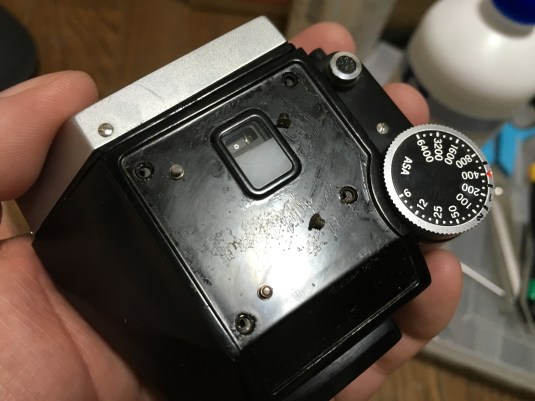

IMG_1088Now that the leatherette is gone, you can now access these 4 screws on the top cover. Just unscrew them to get the top cover off.

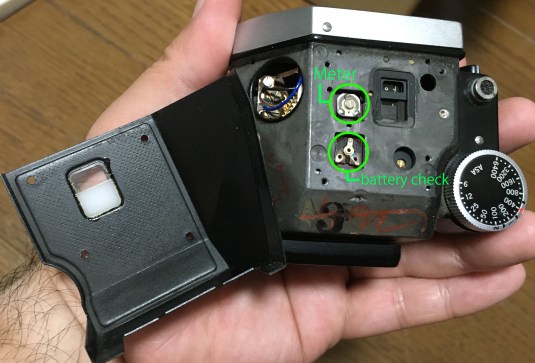

IMG_1089With the top cover out of the way, you can now access these 2 potentiometers or whatever people call these. One is for meter adjustments and another is for battery check. I did not have the need to fiddle with the battery check but I had to adjust my meter so that it is in line with my light meter and DSLR’s.

Be careful with the meter readout window’s plastic cover, you do not want to accidentally poke it and pop it out of place.

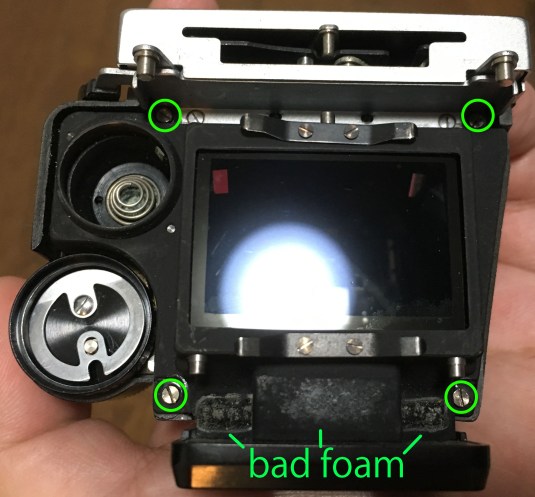

IMG_1090Remove these four screws to open up the finder housing. From this view, you can see the places where the old foam was positioned. They were all dry and crumbled when I used my blower to blow off whatever remained. We will replace these with fresh ones later.

IMPORTANT: Even with the 4 screws gone, you will NEVER be able to separate the housing until a few steps later so do not attempt to open it now.

At this point, you should also remove the batteries before proceeding because you will be dealing with the electronics soon.

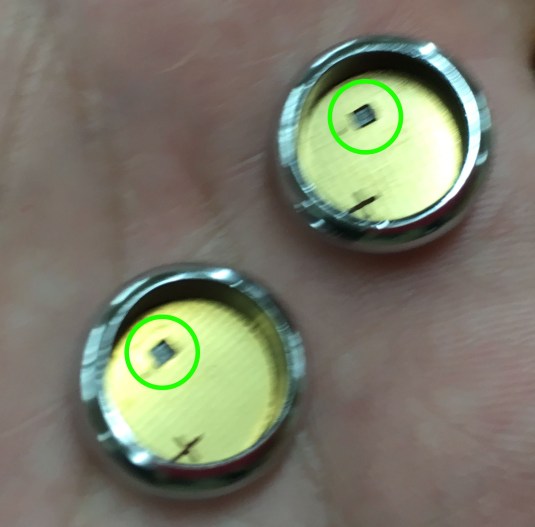

IMG_1072Now that the batteries were mentioned, I would like to show you these adapters that I got. They will take in normal LR-44’s (1.5v) and convert them to 1.35v. That is the same voltage of the original type of batteries these finders take (mercury). Unfortunately, the mercury cells are not openly available anymore due to their toxic chemistry. The voltage difference is enough to affect the light meter’s readout and these adapters help prevent that to some extent.

The adapters are also needed in order for the LR-44’s to fit into the compartment because the old mercury cells’ casing is shaped differently. There are other alternatives including the popular Wein cells and the 625A cells but this adapter is pretty good but the initial cost is something that turn many people off. In the long run these adapters will pay for itself so  I recommend that you get these (LR-44’s are cheap).

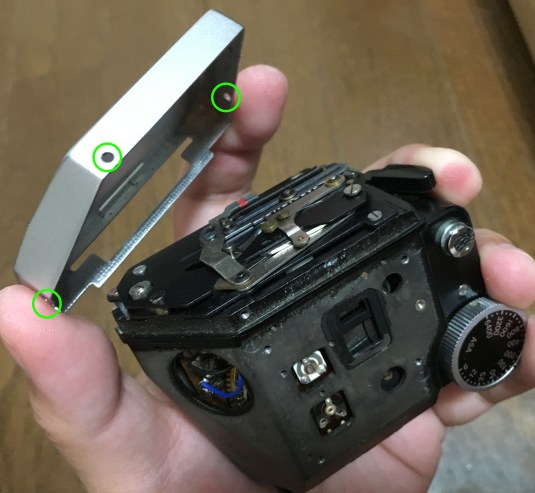

IMG_1091Before you can separate the housing you should remove the front plate first. Remove the 3 screws and carefully remove the front plate. Make sure that you do not damage anything in the front like the delicate connections to the rabbit ears and the mechanism underneath the front plate. The circles on the picture show where these screws were previously.

If you see some grey or black paste in the aperture feeler mechanism, simply use a cotton swab saturated with lighter fluid and wipe away the gunk. The gunk is a mixture of metal filings and old grease. It may not hamper with the operation of the mechanism but it may affect how smooth you turn your aperture ring when the lens is connected to the finder by way of the rabbit ears. You do not need to lubricate this part, just keep it clean.

IMG_1093A few steps back, we removed the 4 screws holding the housing together but you will never be able to get the housing apart until this step. Simply loosen these 3 screws a little bit but never remove them from their holes. Simply slide the ground and terminals (is that what these are called?) away from their respective screws and you’re done. These 3 connections belong to the top part of the housing so you will not be able to open this thing up until you disconnect these things.

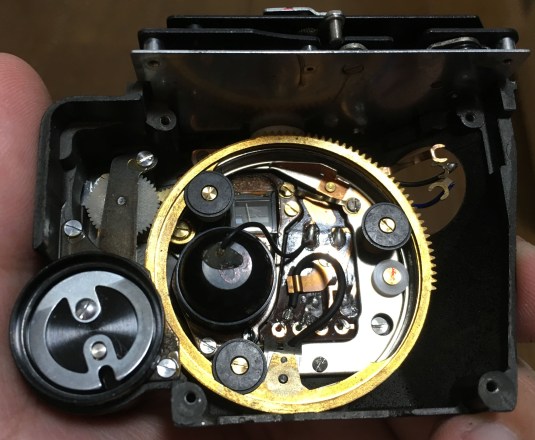

IMG_1094You can now safely separate the housing. As with the aperture feeler mechanism, you will want to look for solidified grease/filings in the big brass ring and wipe them clean while this part is accessible. Remember not to oversaturate the cotton swab with alcohol or else you will soak everything up with alcohol!

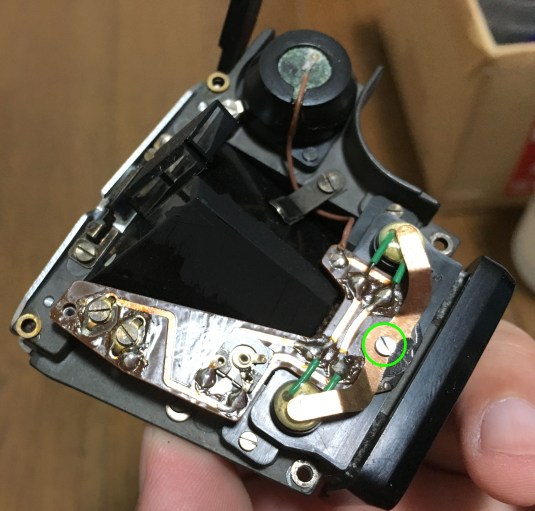

IMG_1096Here is the bottom half of the housing. The printed circuit board (PCB) is brittle so be very gentle when handling this. I accidentally cracked one of these and I was not even forcing it and that ruined my evening so I had to ask my wife to bring me a glass of ice-cold Coke to bring the situation back under control or else I will turn into a big green monster.

Looking at my notes for that ruined PCB, there is a hairline crack present. That and the age of this part made it a delicate part. I learned my lesson so I hope that you do not make the same mistake. I can fix the ruined PCB with a little epoxy, copper wire and solder but that will have to wait until I get into the mood to tackle that because the crack occurred in an inconvenient place with 3-4 connections but thankfully the important parts were spared.

Check the picture and you will see 4 brass washers in each corner of the lower housing. Do not lose any of these and secure these with a dab of nail polish on the other edge / rim of the washer.

Unscrew the encircled part and proceed to the next step…

IMG_1097Now it’s time to remove the cadmium light sensors. Remove this brass brace thing. This is responsible for securing the cadmium cells in place by applying pressure into it. These are old and many do not function properly anymore. Symptoms will vary from a jumpy needle to faulty readings. Replacement parts can be salvaged from other finders or bought from Akihabara. The Japanese camera repair magazine Camera GET (カメラGET) sometimes show listings of who sells these items and where. Yes, camera repair and maintenance is a real hobby here in Japan.

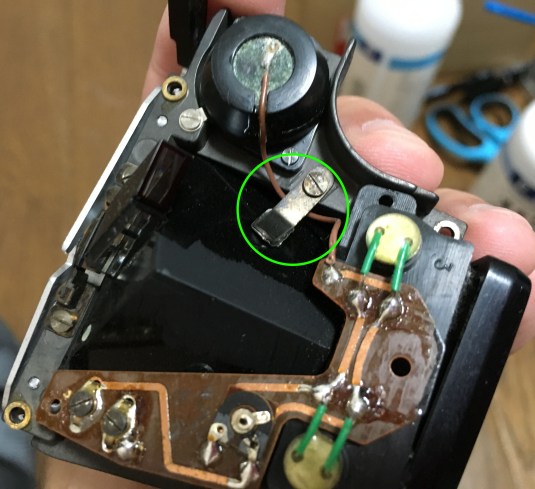

IMG_1098Before you proceed with removing the light metre electronics you should unscrew this part first because a wire runs under this brace.

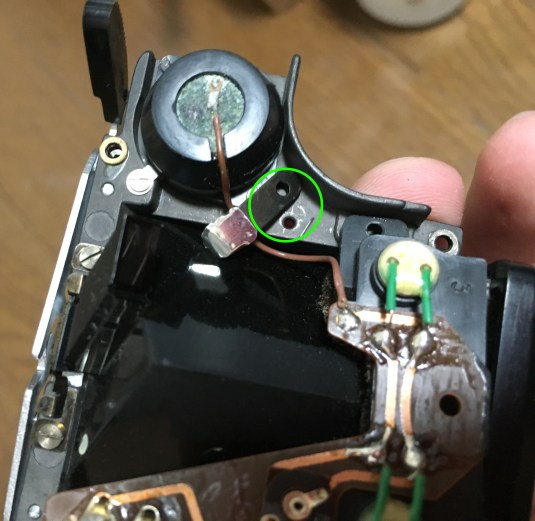

IMG_1099Now that the brace is gone, you can now safely remove the electronics (next step)…

IMG_1100Just look at that thing. In the first decades of Japanese SLR manufacturing, people did not realise that the foam seals will rot on day and harm the prism. I remove whatever is there mechanically by using a toothpick and then scrub it with cotton swabs and alcohol. I will require several tries and plenty of Q-tips so be patient. Be careful not to further damage the prism by being gentle with the scrubbing.

A damaged prism will result in irregular shapes when you peep into the viewfinder and it is very annoying to see this every time you peek into finder. There are a few ways to fix the corrosion and I will discuss it in a later blog post as soon as I find a good and reliable way of fixing this. For now, I will just get by with replacing this damaged prism with a good one.

By the way, these corroded foam seals that directly get in contact with the prism will not be replaced. Instead, we will be using black electrician’s tape in place of the foam. Stick a strip of tape in the cadmium housing with the sticky side facing away from the prism. Just be sure that you do not obstruct the lenses of the cadmium cells and cut some parts away if you have to.

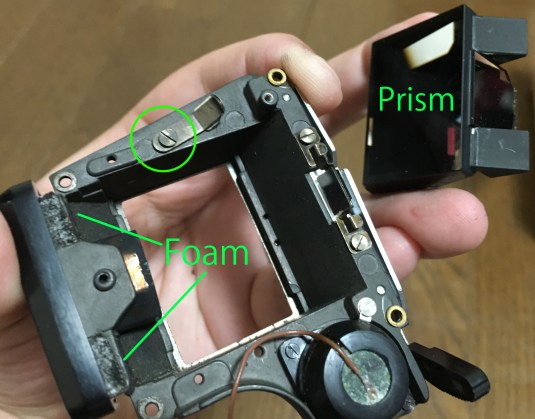

IMG_1101To completely clean the prism housing, simple loosen the circled part to remove the prism and remove the remaining foam seals. The brass part in between the foam is the “tunnel” or baffles for the viewfinder. That thing is loose and not glued in place so be careful.

All of the foam seals used throughout most of the finder are of the 1.5mm (thickness) type I think. I have the 1.5mm and 3mm varieties and these looks like they are made form the 1.5mm type. Please do your own research.

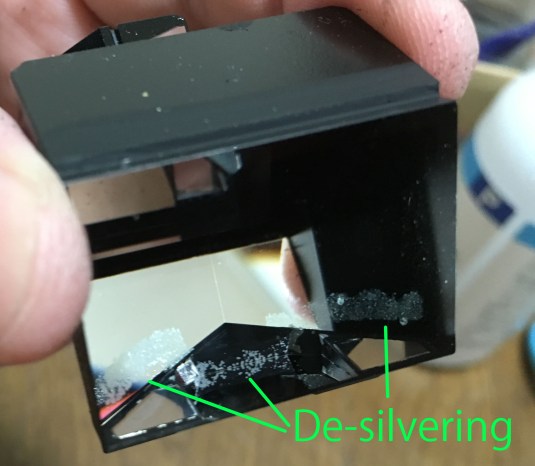

IMG_1102Now, a close-up view of the nasty corrosion on the prism. This is caused by the foam seals found on the plastic cadmium housing. I am really itching to get this thing fixed!

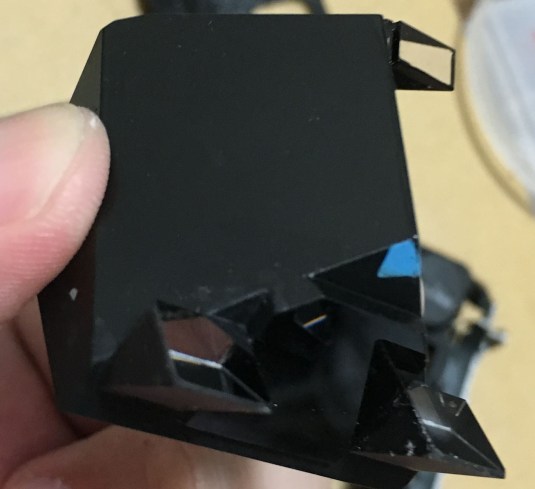

IMG_1129This is a good replacement prism that I got from another finder and all finders with good prisms aren’t cheap! It hurts me inside just thinking about this so I will skip the topic for now.

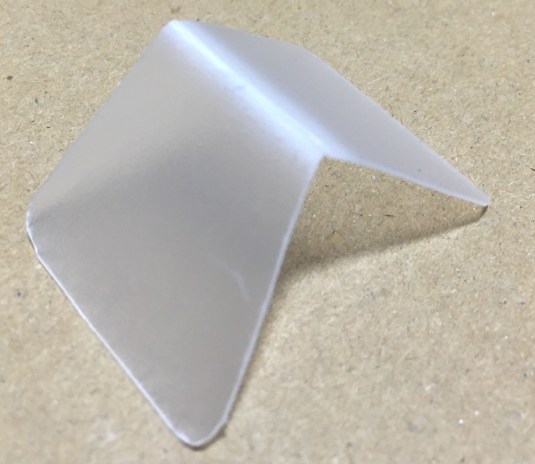

IMG_1130I made a cover to protect the replacement prism from the plastic cover of a notebook. The part that this thing covers in the prism do not get into contact with any foam seals so you can even argue that this is useless but I want to be safe. This thing is a popular mod in the Olympus community here in Japan to protect the prisms of the OM series of small cameras. Nikon F2 finders (apart from the DE-1) have this plastic cowl so I guess Nikon learned from their mistake.

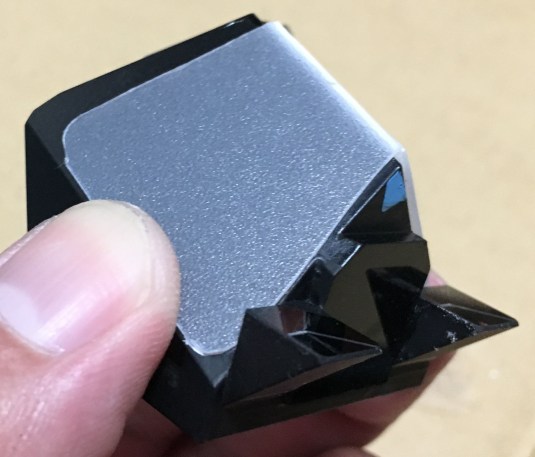

IMG_1131OK, the only part that gets in contact with the foam is the small ridge on top of the exit to the viewfinder but whatever…

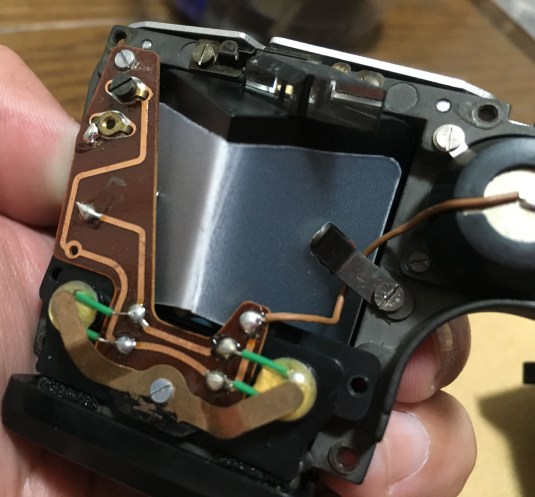

IMG_1132Here is the cover with everything else in place. This is the PCB that I ruined, I can see the hairline crack from this angle. Notice that the electronics are clean.

IMG_1133And now we are back with the old and dirty PCB. Shit happens…


Before you put the top cover back, be sure to adjust your meter while it is accessible. Use a precision minus (-) screwdriver and adjust the small screw on the potentiometer until the exposure is where you want it to be. Please refer to the pictures in the earlier steps to find where the potentiometer is.


That’s it for today! Our short write-up ended up being a long a long teardown guide. If you have any ideas or suggestions, you can reach me via our community Facebook page or the comments sections so I can add your feedback to this page. Until next time, Ric.

PS: Special thanks to Keith and Peter for pointing out that the photosites were not made of selenium but cadmium (CDS).
