Introduction:

I have some people ask me about how to deal with fungus. This is also a niche topic that is not commonly discussed and even if you have found some information it is usually vague or false, so you will have to do your own tests. For this reason, I will share with you my fungus removal techniques. This is something that I have been doing to any lens that I bought that has fungus. It has worked so far and the lenses stay clean and clear.

Fungus in a lens is something that all photographers try to avoid as much as possible. It’s something that is impossible to avoid because fungus spores are everywhere, from the air we breath to every surface that we touch. The only way to keep this from happening is to not provide them any chance to germinate by depriving them of nutrients and other essentials for them to thrive.

The spores are microscopic so what you’re seeing are just the tendrils. These tendrils spread out to gather nutrients back to the fungal growth. It dies when the source of the nutrients have been exhausted, leaving behind the etchings made by the tendrils. When the fungus has not exhausted the nutrient source before it expires, it is going to spore the next generation, and so the cycle goes on.

Factors that promote fungal growth are:

• Lack of direct sunlight
• A source of nutrients
• Humidity

The nutrients can come from a multitude of sources, from the minerals used on the glass to contaminants like finger oils, dead organic material and organic fibers. These are impossible to avoid, some even come with the lens itself. Trying to prevent these foreign objects from settling inside your lens is futile. While we are on the topic, it is important to note that different species of fungus will thrive on different conditions. What you are seeing may be a mix of multiple species.

Humidity is also something that is impossible to avoid, one way to get it and other foreign contaminants into your lens is by cleaning them. By rubbing the lens’ surface or blowing air to it, you’re leaving behind particles and humidity on the surface and if the burst of air is strong enough, you may deposit these even further into the inner corners of the lens. Zooming pumps air in-and-out of a lens, it is also unavoidable.

Finally, storing your lens inside a dark place or cabinet for a long time without any preventative measures will give the fungus a great environment to thrive. Fungus hates light, especially sunlight.

Specimen:

I will now show you some of the worst cases that I have handled. These are disgusting and I would never buy anything like this unless it’s really cheap. Damage like this does not occur overnight as far as I know and these specimens are indicating that these were left in a dark and damp place over a period of months to years (even decades) as far as the climate of Eastern Japan is concerned.

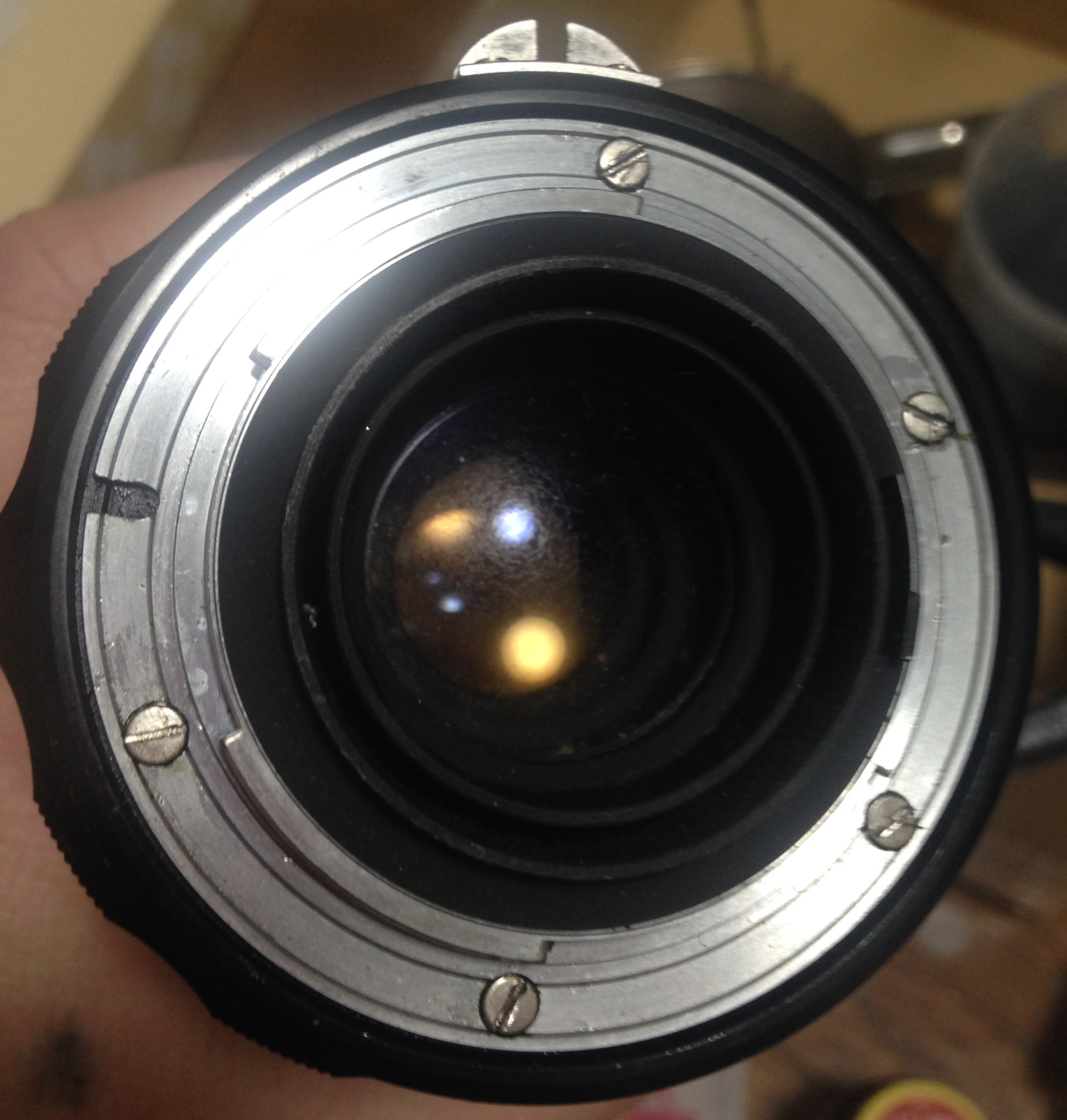

Check this Zoom-Nikkor 43-86mm f/3.5 Ai out, this is probably the worst that I ever took apart. Not only were the elements heavily infested with fungus but some of the metal parts were also affected by it.

Here’s another case, the tangles are still alive.

It seems that the ones that affected the metal parts were feeding off from the lubrication. Thankfully, the fungus did not leave any permanent damage to the lens or coatings, at least it’s nothing serious.

I got this Nikkor-Q 200mm f/4 Auto for the price of 3 cans of Coke! This was heavily infested with fungus but as you can see in this article, the damage was repaired and the lens never looked as good as this for many years.

I name this type of fungus “Nescafé“, I think it’s yeast. Not because it is something that’ll keep you awake but because it looks powdery in appearance. It has began eating-away parts of the coating. This variety is usually not that destructive at earlier stages. This is an advanced case, it is the worst that I have ever seen. This was found on a 60-year-old Nikkor for the Bronica.

Having shown you these, I will tell you that there is still hope for them as you’ll see later. Luckily, the fungi haven’t etched away the surface and left any damage that’s deep enough for my fingernails to feel. If that is the case then it might affect the optical performance of these lenses.

Prevention:

You can prevent fungus from germinating by depriving it of the things that it needs to grow:

• Always store your lenses in a dry box or dry cabinet and make sure that the humidity is very low when you check the hygrometer.
• Avoid using canned air to blow the front or rear lens elements, it’s strong enough to send particles inside the lens. A good generic bulb blower is more than adequate so long as the pressure is strong enough. Canned air isn’t a good choice in the long run since it’s consumable, an additional cost.
• After shooting outside in the rain or any wet environment like the sea, be sure to dry your setup well before you store it. Wipe the excess moisture with a dry, clean towel, leave it on a zip-lock bag with plenty of desiccant like silica gel.
• Make sure that your desiccant is dry and charged. Leaving several bags of retardants is a good idea. Here in Japan, α-Bromocinnamaldehyde can be easily bought from camera stores and it is a known fungal growth retardant. Just refill or buy new ones every year, they are cheap anyway.
• Be sure that you use your lenses occasionally in sunny weather, take it for a walk. The sun’s radiation is powerful and will help prevent an infestation.

Packets of “alpha bromo cinnamic aldehyde” or α-Bromocinnamaldehyde is effective for preventing fungus from going out of control and they are very cheap, too. Contrary to what’s printed (fungicide), these won’t kill any fungus, they only keep their growth in check.

This is the best way to protect your lenses with α-Bromocinnamaldehyde. They have to be spaced around 5-10cm of each other. Since the packets are connected like this, I simply wrapped them around my lenses.

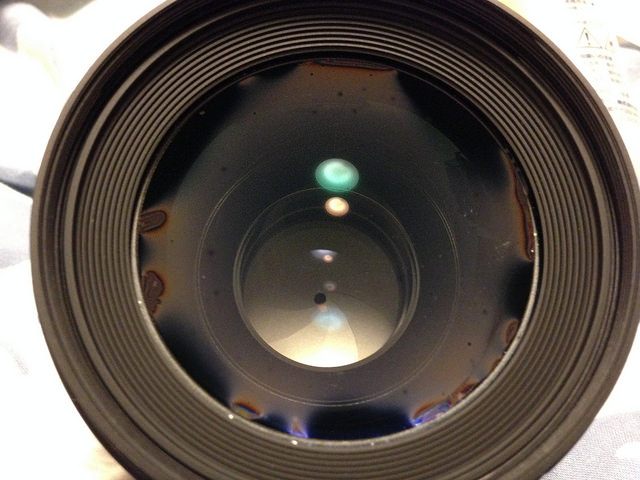

Here is an example of a lens that was blown directly with canned air, this is the Sigma 50mm f/1.4 ART. The lens is not sold as weather sealed but I do expect more from Sigma. They could have simply applied some glue or sealant to seal the front element like what Tamron did on the 70-300 VC lens. The moisture that you see here came from my lens cleaning solution by the way, so it’s just alcohol.

These are just some of the ways that I know of for preventing fungus infestation. If you know something that works, please feel free to mention that in the comments.

Repair Tools:

You don’t need any special equipment to clean fungus. Most, if not all of the things that you will need can be bought from the pharmacy or from your local camera store, they are relatively cheap as well.

Cleaning fungus form your lens is easy but you’ll need to be comfortable enough at opening lenses since in order to get to the deepest parts of the optics, you need to be able to dismantle the lens to access the problematic areas. That’s something that is beyond the scope of this article.

Cleaning solution. The ones that I use is an equal mix of ammonia, hydrogen peroxide and concentrated vinegar, these are all known to kill fungus. These are used to treat dogs with fungal skin infection to your own case of athlete’s foot! These will melt fungi with ease and help prevent them from returning.

Die, fungus! Here’s a video of the solution in action. It will just fizzle for a short time as the solution works on the fungi. This is safe for the coatings on Nikkors but may damage the coatings from other brands.

Never soak your glass in the solution for longer than 3 minutes, cemented lens groups should never be soaked as well. Simply moisten a piece of cotton and then wipe the lens using it. If you think that it is too strong then cut this solution with distilled or purified water.

WARNING: As with all chemicals, use common sense when handling and mixing them because this is a potent mix! If you have athlete’s foot this will cure it in one application! I will not be held responsible for anything that will happen to you. Always use protection when handling them and work in a ventilated place. Exercise caution!

Windex is very good for smaller pieces of glass that you can’t remove from its housing, such as the lenses found in viewfinders. It’s good because it has ammonia but what I do not like about it is the soapy suds it leaves behind as residue. It’s easy to clean or rinse it’s just another step that you need to think about.

Lens Tissue. These are different from your usual Kleenex in that it has not a lot of lint and this will not tear. These tissues are also soft and will not abrade with the surface of your lens elements.

These are also great for wet cleaning of general camera parts, just put a couple of drops of lighter fluid or denatured alcohol on it and use it to wipe away oil and dirt from any hard surfaces like metal and plastic.

Always remember to never reuse a tissue that has been used to wipe a dirty surface. Use a clean tissue to wipe your lens element every time.

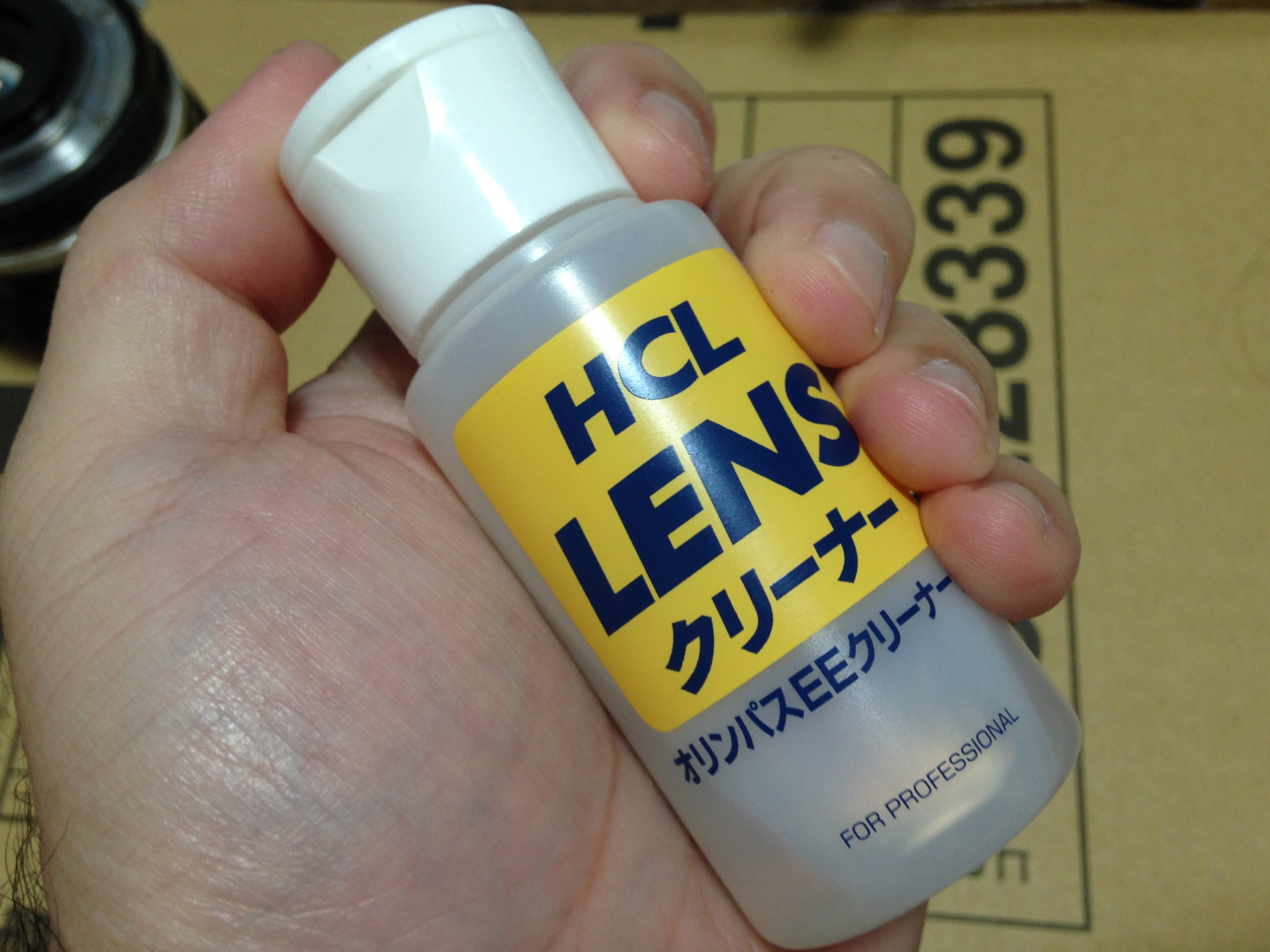

Lens cleaning fluid. These are just some kind of alcohol and other solvents mixed with distilled water and sold at a high price. These are great for cleaning fingerprints and other oils from your lens because they evaporate really quick and will never leave a puddle unless you use too much of it.

A good alternative to this is to just use your breath to fog up your lens’ surface and wipe the moisture off before it evaporates. While this will work and has served many people well, I won’t use it if I have a bottle of lighter fluid available. Your breath is basically just water vapor but you might contaminate the lens with your spittle and that tiny droplet of spittle is a good enough source of nutrients for fungus to germinate.

Latex gloves. Use these on one of your hands when you are cleaning so that you won’t contaminate your lens with finger oils. These are also great for protecting yourself from the chemicals that you are going to use as some people might be allergic or sensitive to them.

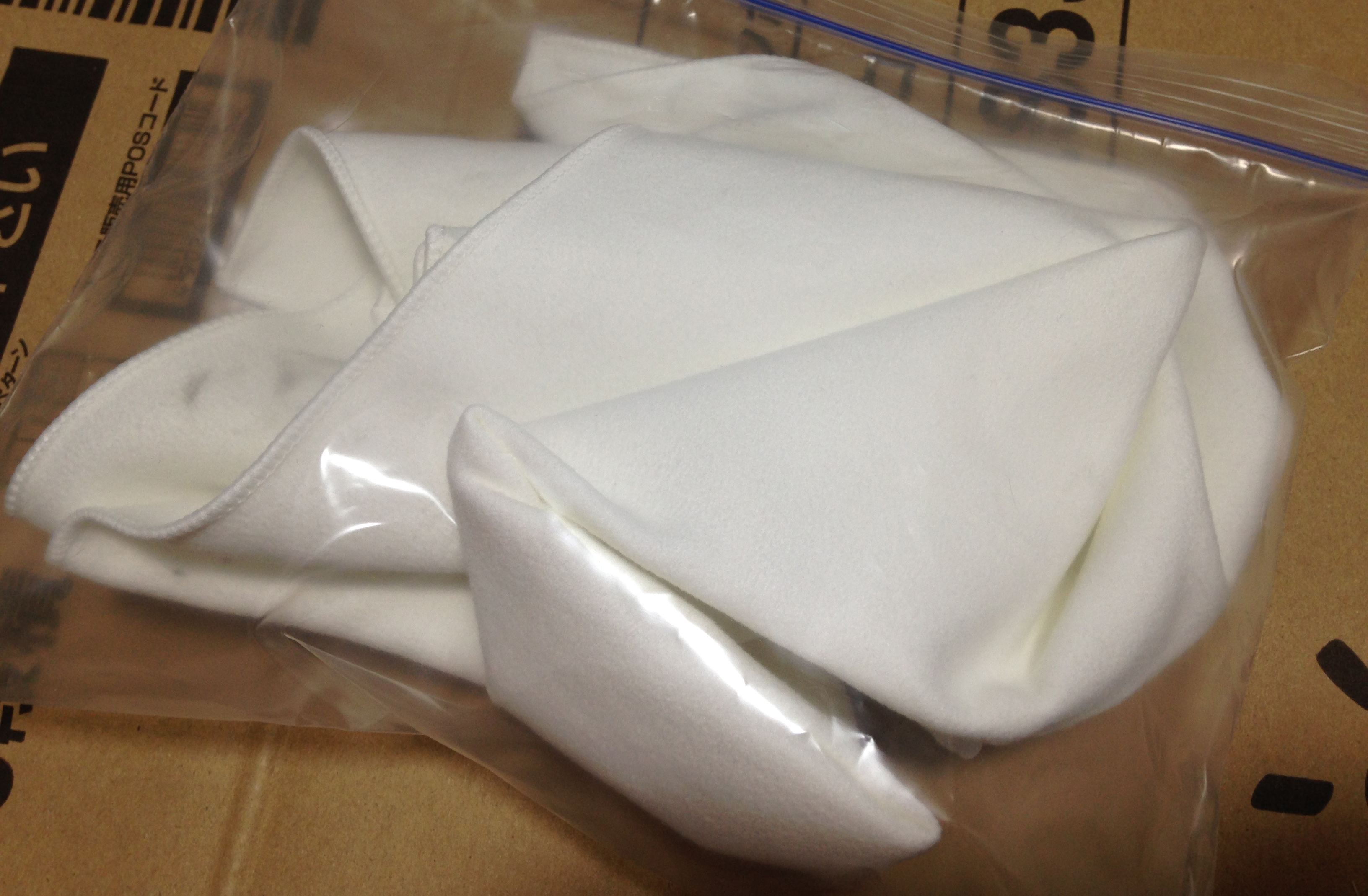

Lens cloth/chamois. Use these for the wiping the lens elements before you install them so that it will wipe away or absorb any leftover oils and dirt. Never use these to wipe anything else, keep them clean. I always store them inside a zip lock bag to keep them as clean as possible.

Bulb blower. Go ahead and buy the expensive ones, you only need to buy it once anyway. A good one will not only give you a more powerful burst of air each time you squeeze it, it is also going to be one of your best investments since these usually last a lifetime and even the cheap ones will last you a long time.

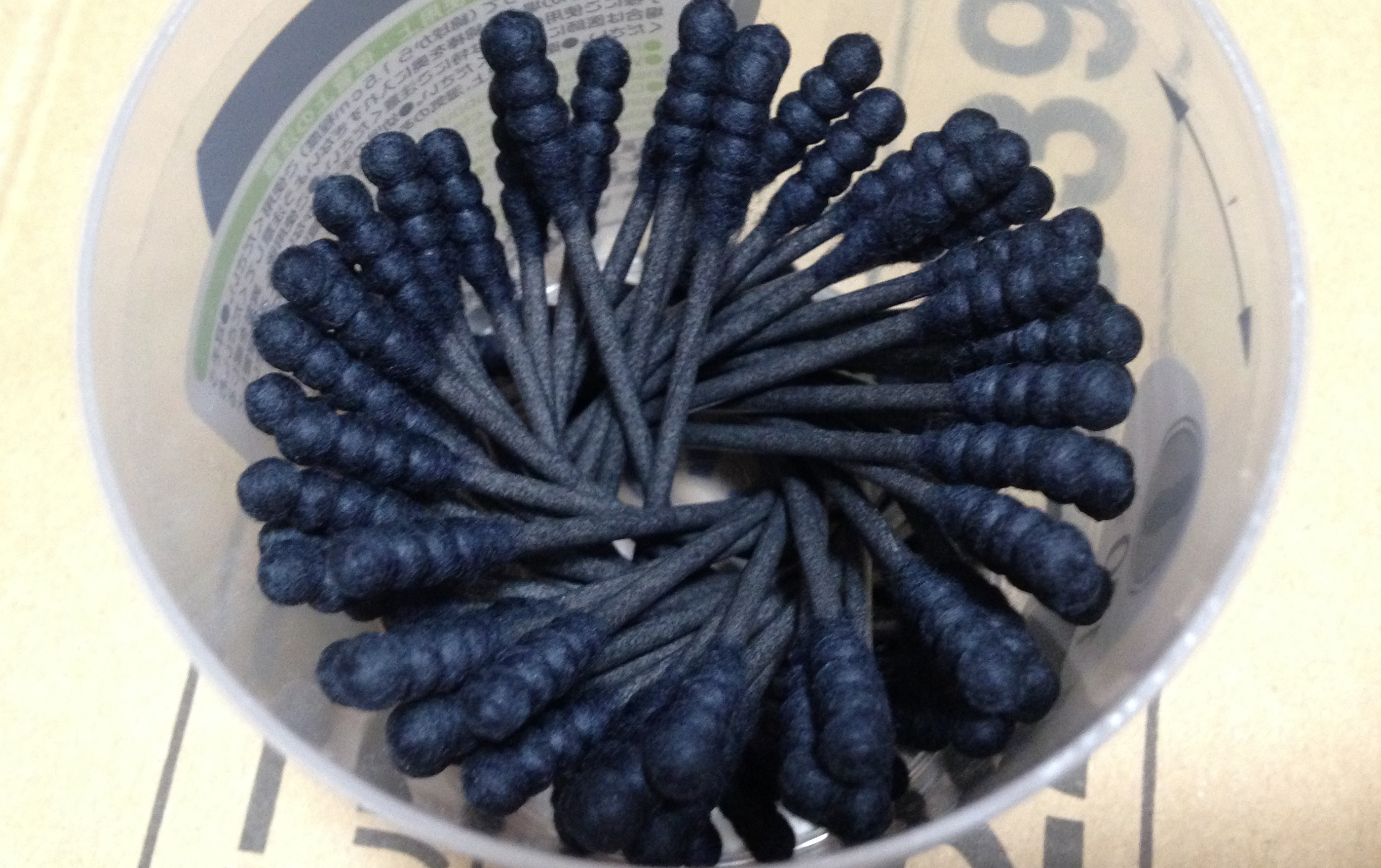

Cotton buds. These are used for cleaning inaccessible corners of the lens such as when it is glued inside a deep metal barrel. Using your fingers to clean these parts can be an annoying task but with these things, you can clean those hard to reach parts easily. I also buy the really small ones that’s used for babies, even the expensive small and sharp ones are very useful. Check your cosmetics section because these are used for shaping eyebrows. Make sure that the cotton is thick enough so that the plastic handle will not scratch the glass. This is important because the handle will sometimes poke through when the cotton is wet. The alternative to this is to just wrap a sheet of cotton to a sharpened toothpick, this is even better because it is easy to customize the shape of the tip.

Solvent. This one in the picture is a blend of methyl ethyl ketone (MEK) and acetone. This particular one is branded so it’s a bit pricey.

I use this to soften up any adhesive or thread-lock for securing things. Thread lockers are used to secure threads, collars and the like so that the lens elements are securely mounted in place. If a ring won’t budge the first time you try to unscrew it, put a drop of solvent into the threads and let capillary force spread the fluid. Do not drown it with solvent as you might soak more things than you originally intended!

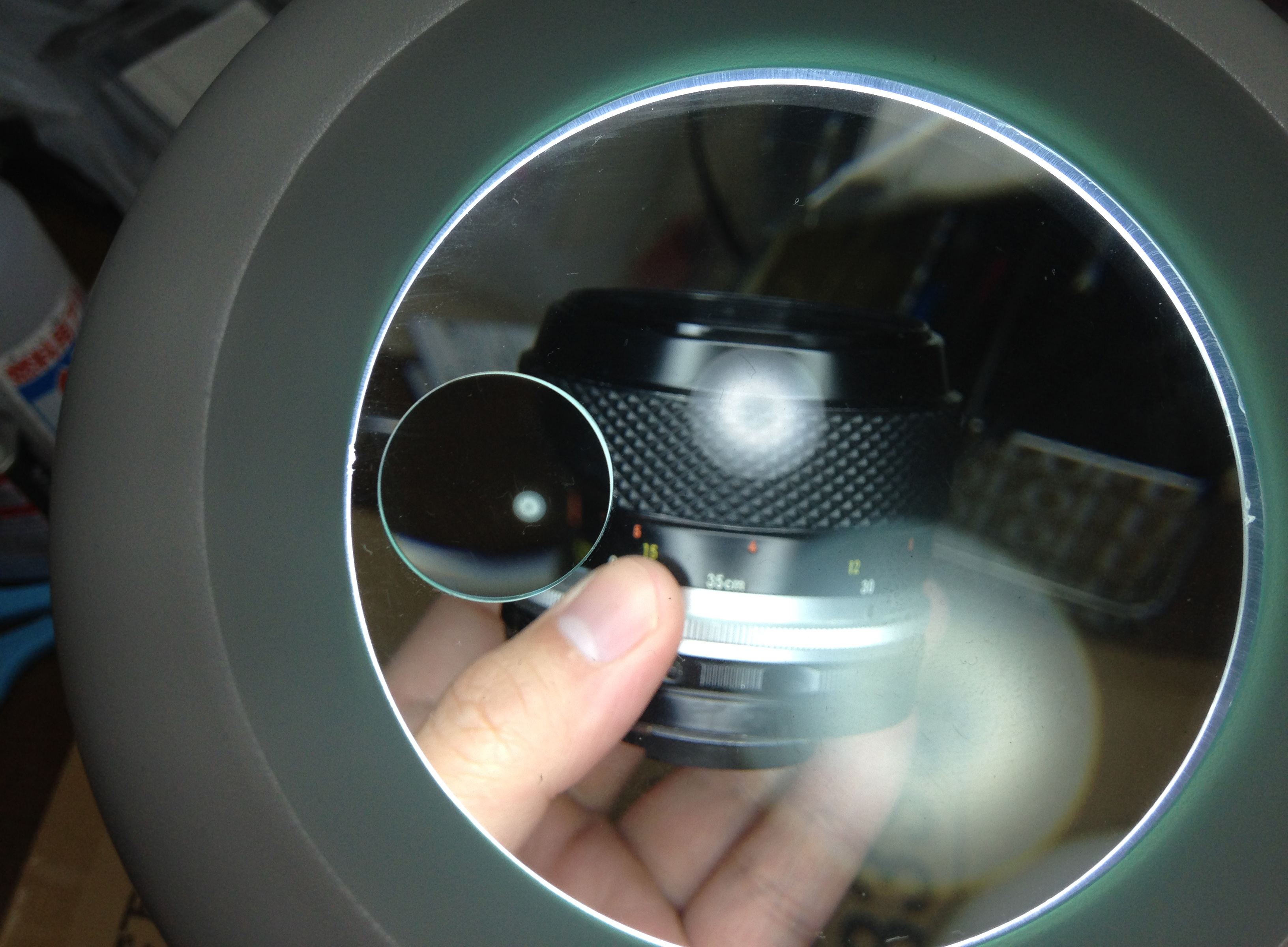

Lamp. I use this lamp to illuminate the surfaces that I am working on. The lamp that you see in the picture is special in that it has a loupe built-in with the lamp housing. Any lamp will do so long as it is bright.

If you don’t have a lamp, a bright LED torch is even better, in fact, it shows anything on the surface of the lens better because LED torches emit concentrated cones of light.

Before We Begin:

If this is your first attempt at opening a lens, I suggest that you read my previous articles regarding screws & drivers, grease and other things. Also read about the tools that you will need.

I highly suggest that you read these primers before you begin (for beginners):

• Essential tools
• Best practices 1
• Best practices 2
• Best practices 3
• Ai conversion

Reading these should lessen the chance of ruining your lens if you’re a beginner. Also, before opening up anything, always look for other people who have done so in the internet. Information is scarce, vague and scattered but you can still find some information if you search carefully. Just be careful since some people will show you incorrect ways of “fixing” things such as the liberal use of WD40 and other amateur ways. If it sounds like a shortcut or hack, then it is most likely amateur work that will make things worse.

Repair Procedure:

First, work in a dry, ventilated and dust-free place. The fumes alone can make some people sick but good thing for me, I am used to the scents and fumes of a workshop. Growing up in a watch repair shop and having scale modeling as a hobby and job has it’s merits, too!

Always work with a clean and dry towel underneath what you are doing. This will prevent any serious damage to the lens elements when you accidentally drop one. I personally use kitchen towels so that I can use it to wipe the table off and discard them.

This section will not have pictures in it since it is difficult to take pictures of the steps when both or your hands are occupied. The steps are easy enough to illustrate without pictures anyway so it should be fine if you just pay attention.

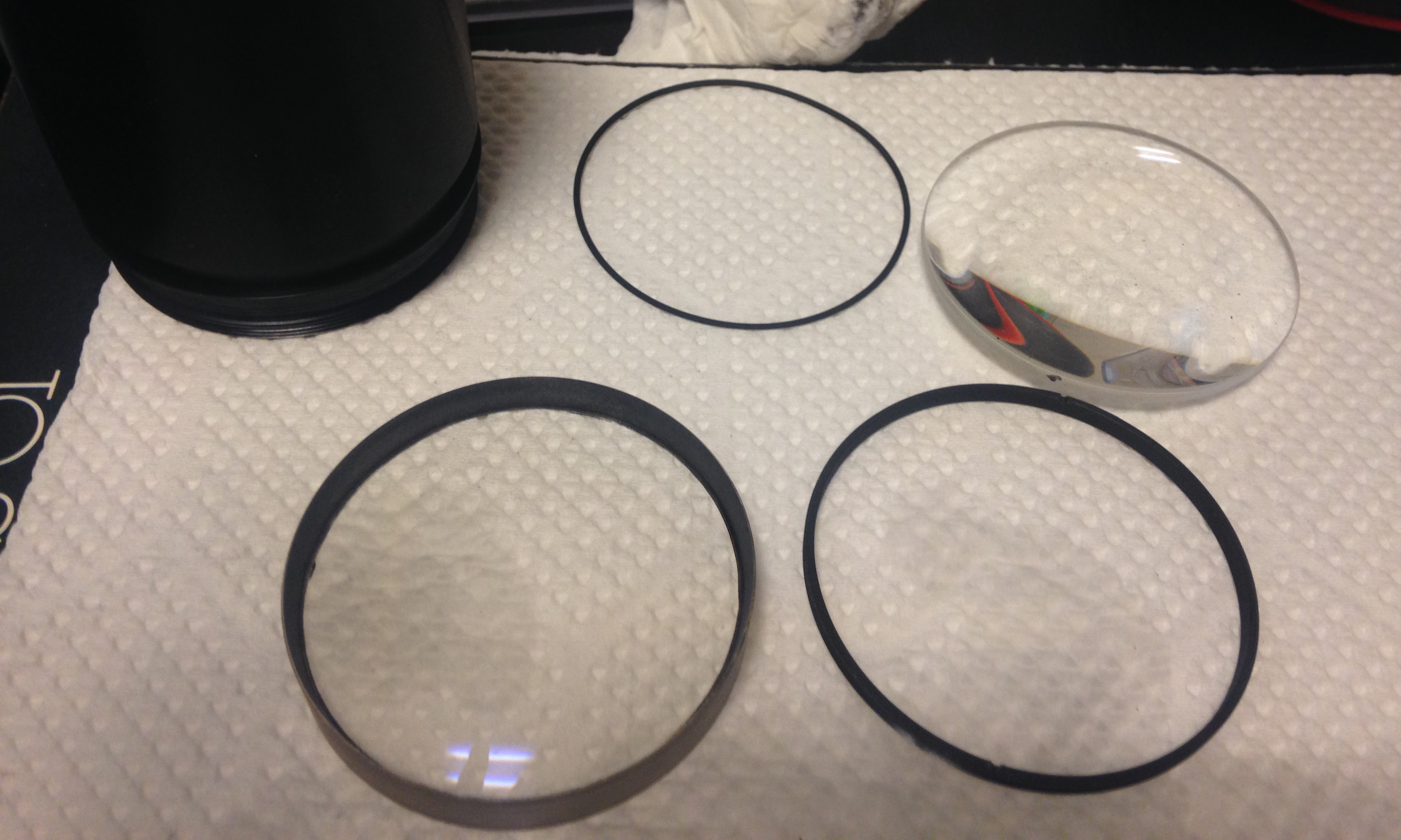

1. Remove the affected elements and store them in a safe place. Be sure to mark which direction the elements should face. I usually mark the front edge of a lens so that I’ll know which side should face forward. I use a soft pencil for this since it can be erased with your thumb easily.

2. Blow away any debris from the surface of the lens with a lens blower. Be sure not to leave anything hard like sand or bits of paint, wiping the lens with those in it will scratch the coatings, leaving swirl marks and deep scratches.

3. Prepare the solution and soak the lens elements in it for a few minutes. Most of the time, the fungus can simply be wiped off without the need to soak it but soaking the lens in the solution makes sure that you give the solution some time to work and kill whatever is in there. Be careful not to leave any lenses with compound elements (glued elements) in the solution for too long. The solution can eat away at the cement (Canada balsam) and this will give you even more trouble and will be impossible to fix economically.

4. Remove each element at a time and place them on top of a clean kitchen towel, wiping each one of them using a clean lens tissue while it is still wet with the solution. The fungus should lift away easily. If it is still there, soak it again until it is soft enough. I rarely need to soak it for more than 2 minutes.

5. Always wipe in a circular motion while applying gentle pressure against the lens, never wipe a lens’ surface with dry lens tissue. Always use a different part or corner of the tissue so you always use a clean part for wiping.

6. Once the glass is clear, use a blower to blue away excess moisture. You can wear a glove on one of your hands so you won’t leave any finger oils as you handle the glass.

7. Get a fresh lens tissue and place a drop of lens cleaning fluid on one of the corners. Be sure not to put too much of it, you only want a moist tissue and not something that is dripping wet. Wipe the surfaces of the glass with a circular motion until it is clean and clear. The lens cleaning fluid will dry up really quick so wipe it fast so that it will not leave any marks as it evaporates.

8. Get your lens cloth/chamois and wipe each surface of the glass so that they are free from lint and oil. Carefully inspect each surface under a lamp or shine a bright LED light to see if you have left fibers in it. Do not take too much time as there will be times when you will leave small debris on the surface that is too small to see with the naked eye without using a LED light. It is unavoidable and even new lenses will have them sometimes.

9. Carefully reinstall the glass. Take care not to scratch or chip the corners of the glass while doing so. When the lens element is secure, blow it some more with your bulb blower and make sure that you do not leave anything there that is big enough to see with your naked eyes under the lamp. Set the assembly aside and cover it with a clean plastic card.

10. Repeat the steps until you have completely reassembled everything.

It’s important to note that you should also clean the parts where the glass were attached to so you’re sure that you have cleaned and removed whatever you can before you seal the lens. What I do is I wipe it with the same solution that I use to soak and clean the lens elements with.

From my Dear Readers:

This section is where I put what some of my readers have to say on the topic.

This is from a certain “Andrea B“:

Disinfection, Sterilization and Preservation, 5th Edition, 2001
edited by Seymour Stanton Block
published by Lippincott Williams & Wilkins

See:  Page 1076, Figure 54.4 Microorganisms ranked according to their relative susceptibility to chemical disinfectants.

There are 5 susceptibility levels: highly susceptible, susceptible, resistant, highly resistant and extremely resistant.

Fortunately for us, fungal spores are listed as Susceptible to the following disinfectants: some alcohols, aldehydes, biguanides, ethylene oxide, halogens, peroxygen compounds, some phenols.

Now, Mr. “Toby F.” has this to say:

I’ve had good luck with Hydrogen peroxide. I’ve also used 50/50 water/bleach.  Always make sure to clean well with water the final clean with 99% isopropyl alcohol to get rid of whatever you use..

From the comment box, “Lloyd” is concerned that MEK is too strong a solvent.

Conclusion:

Cleaning lens fungus is a chore and is something that I would avoid if I can. The only cases where buying a lens with fungus is acceptable for me is when it is being sold dirt-cheap and if the lens has no scratches on the coating or cleaning marks. This gives me the chance to own these lenses while paying a fraction of the price.

This lens has no trace of fungus now. The fogging you see on the middle element is just trapped moisture and it’s gone after a few hours. Seeing this is scary because you’ll never know if a lens was cleaned before you bought it! Just look at the picture in the introduction and you see get what I mean.

The Nikkor-Q 200mm f/4 Auto‘s elements look really clean as if the fungus problem was never even there!

I hope that you have learned something from this article so that you can start removing fungus from your lens. Even if you don’t have anything to clean, knowing how to prevent it is even better. This knowledge is also helpful for you to assess if a lens is worth saving or not.
